Mobility
Featured grades
A Range of Materials with Excellent Dimensional Accuracy for Communications Equipment and Sensor Components
Communications devices and sensor components used in technologies such as 5G communication and autonomous driving require dimensional accuracy, which requires resin materials that have a low level of warpage. To that end, Toray has now developed PBT and PPS resins with reduced warpage, which is one of the challenges faced by crystalline engineering plastics.
White Paper
Overcoming the weaknesses of PBT resin! Toray's improved hydrolysis-resistance technology
The PBT resin used in the applications such as ADAS will deteriorate and become weaker due to hydrolysis and being exposed to high temperature and high humidity environments for long periods. We have invented a proprietary resin reformulation technology that retains the excellent characteristics (moldability, dimensional accuracy, electrical properties) of PBT resin while improving its hydrolysis resistance.
No More Breakage Due to Heat or Cold! The Thermal Resistant Formulation of PBT Resin and Toray CAE-Analyzed Examples
Toray has contributed to solving problem with metal-resin composite parts by developing PBT resin with improved cold and heat resistance, as well as by providing customers with verification results in advance using our proprietary CAE analysis software. We would like to introduce an example of using grades suitable for heating and cooling cycles and CAE analysis.
Toray's TORAYCON™ PBT Resin Designed for Safety and ReliabilityVastly improved alkali-resistance through water-repellent technology and hydrolysis-resistance technology
Since the products involved in the various advanced driver-assistance systems (ADAS) that support this evolution are made to help drivers with things like peripheral monitoring, they are being used in increasingly harsh environments. In this whitepaper, we will look at how we've increased the alkali-resistance—a characteristic weakness of conventional PBT resin—to produce a new, vastly improved, highly durable material.
Achieving PPS Resin Tracking Resistance (CTI ranking 0) That Enables Miniaturizationand Space-saving in Automotive Components
Tracking resistance of insulating materials is the key to miniaturization and space -saving in electrical components important for the switch to electric vehicles.We are delighted to show you this innovative new material which is widely used in automotive electrical components. It has achieved a CTI ranking of 0 (600 V) for PPS resin, which was previously thought impossible.
Toray's Highly Durable PBT ResinTORAYCON™ 5008 Series That Meets USCAR Standard Class IV or Higher
PBT resin is used in many electrical automotive components.However, resin deteriorates and weakens in high-temperature, high-humidity environments,so there is a need to increase its durability. Toray has developed the 5008 Series. With dramatically improved hydrolysis-resistance technology,this lineup satisfies the incredibly stringent USCAR T4 (150°C) standard for durability.
Inverter (Power Module)
Resin | TORELINA™ PPS resin |
---|---|
Grade | A660H V |
Material Features / Reasons of Adoption | Tracking Resistance |
Resin | TORELINA™ PPS resin |
---|---|
Grade | A675 GS1 |
Material Features / Reasons of Adoption | High Flow, Heat Cycle Resistance |

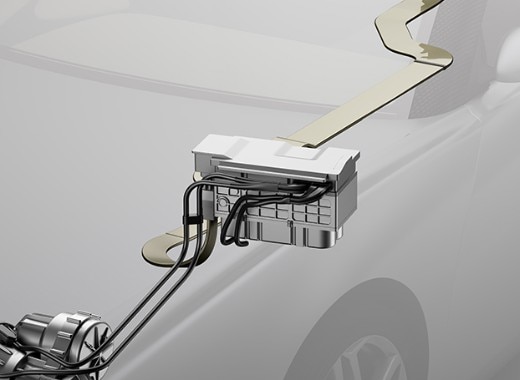

Inverter (Terminal/Bus Bar)
Resin | TORELINA™ PPS resin |
---|---|
Grade | A575W20, A675 GS1 |
Material Features / Reasons of Adoption | Long Term Heat Resistance, Dimensional Stability, Heat Cycle Resistance |

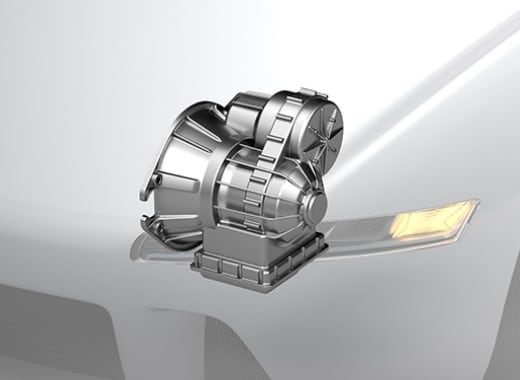

Motor (Terminal/Bus Bar)
Resin | TORELINA™ PPS resin |
---|---|
Grade | A575W20, A675 GS1 |
Material Features / Reasons of Adoption | Heat Cycle Resistance, High Flow |
Motor (Insulator)
Resin | TORELINA™ PPS resin |
---|---|
Grade | A575W20, A675 GS1 |
Material Features / Reasons of Adoption | Dimensional Stability, High Flow, Heat Cycle Resistance |
Battery (Connector)
Resin | TORAYCON™ PBT resin |
---|---|
Grade | 1214 X01 |
Material Features / Reasons of Adoption | Flame retardancy, Flowability, Toughness |
Battery (LiB Cell Separator)
Resin | TORAYCON™ PBT resin |
---|---|
Grade | 7164G-S15 |
Material Features / Reasons of Adoption | Low Warpage, High Flow, Flame retardancy |

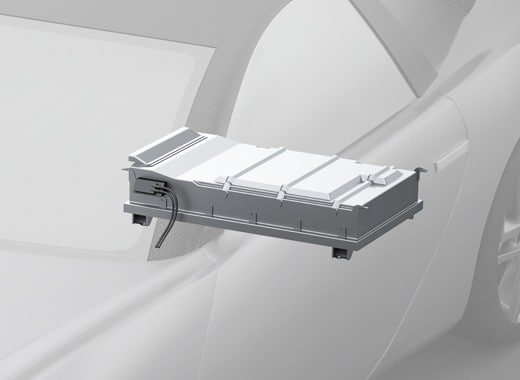

Battery (Gasket)
Resin | TORELINA™ PPS resin |
---|---|
Grade | Unreinforced PPS |
Material Features / Reasons of Adoption | Toughness, Heat Resistance, Compression Creep Resistance, Chemical Resistance |

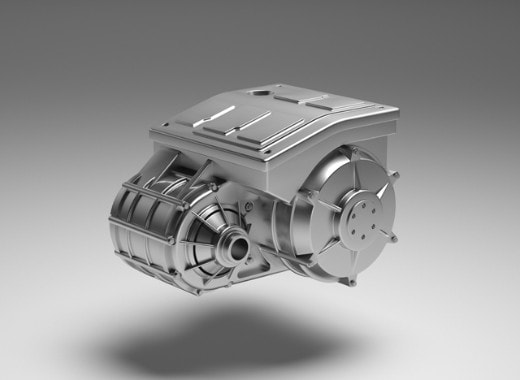

e-Axle
Resin | TORELINA™ PPS resin |
---|---|
Grade | A503 X05 |
Material Features / Reasons of Adoption | High Rigidity |
Resin | TORELINA™ PPS resin |
---|---|
Grade | A675 GS1 |
Material Features / Reasons of Adoption | High Flow, Heat Cycle Resistance |

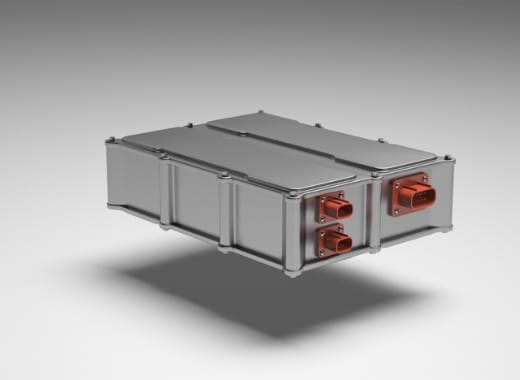

On Board Charger
Resin | TORELINA™ PPS resin |
---|---|
Grade | A660H V, H310E |
Material Features / Reasons of Adoption | Long Term Heat Resistance, Dimensional Stability, Tracking Resistance, Thermally Conductive |
High Voltage Connector
Resin | TORAYCON™ PBT resin |
---|---|
Grade | 7164G-X02 |
Material Features / Reasons of Adoption | Flame retardancy, Hydrolysis Resistance, Low Warpage |

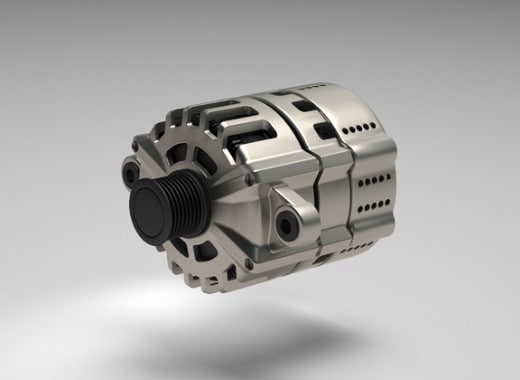

48V System Starter Generator
Resin | TORELINA™ PPS resin |
---|---|
Grade | A310M N7 |
Material Features / Reasons of Adoption | Dimensional Stability |
Resin | TORELINA™ PPS resin |
---|---|
Grade | A570 CX1, A675 GS1 |
Material Features / Reasons of Adoption | Heat Cycle Resistance |
Millimeter Wave Radar (Radome)
Resin | TORAYCON™ PBT resin |
---|---|
Grade | 1101G-30H |
Material Features / Reasons of Adoption | Strength, Toughness, Hydrolysis Resistance |
Resin | TORAYCON™ PBT resin |
---|---|
Grade | 4158G-30H, 4151G 30HL |
Material Features / Reasons of Adoption | Laser Weldability, Hydrolysis Resistance, Low Warpage |

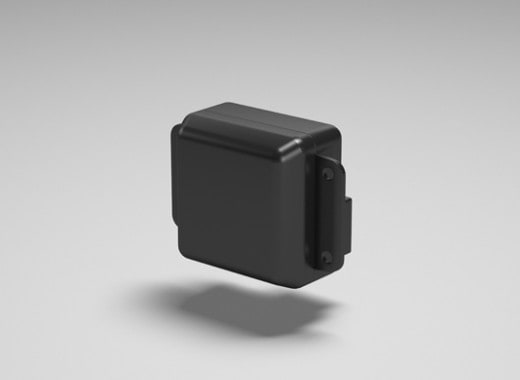

Millimeter Wave Radar (Housing)
Resin | TORAYCA™ CFRTP |
---|---|
Grade | PBT-CF |
Material Features / Reasons of Adoption | EMI Shielding without Metal and Plating |
Resin | TORAYCON™ PBT resin |
---|---|
Grade | 7151G-30, 7151G-X04 |
Material Features / Reasons of Adoption | Low Warpage |
Automotive Camera (Housing)
Resin | TORAYCON™ PBT resin |
---|---|
Grade | 1101G-30H |
Material Features / Reasons of Adoption | Hydrolysis Resistance |
Resin | TORAYCON™ PBT resin |
---|---|
Grade | 4158G-30H, 4151G-30HL |
Material Features / Reasons of Adoption | Laser Weldability, Hydrolysis Resistance, Low Warpage |

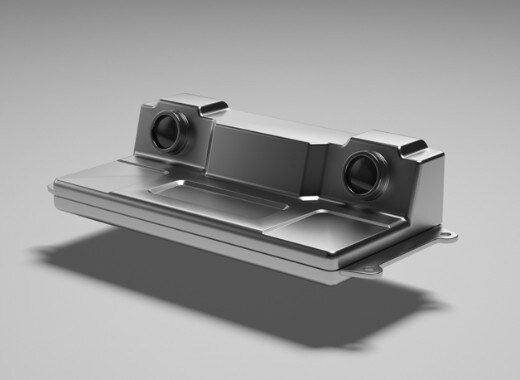

Automotive Camera (Bracket)
Resin | TORAYCON™ PBT resin |
---|---|
Grade | PBT-GF Low Warpage |
Material Features / Reasons of Adoption | Low Warpage, Epoxy Adhesiveness, Good Appearance |
Automotive Camera (Connector)
Resin | TORAYCON™ PBT resin |
---|---|
Grade | 1101G-30H, 5108G-X01, 5108 X03 |
Material Features / Reasons of Adoption | Hydrolysis Resistance |

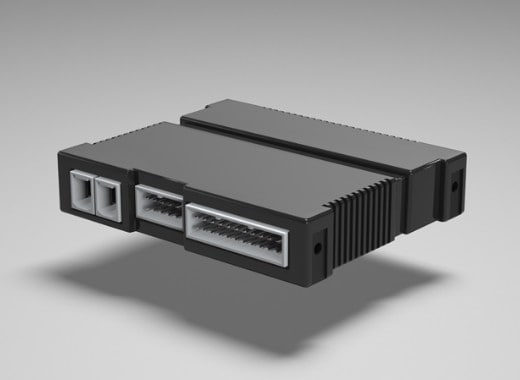

Telematics Control Unit
Resin | TORAYCON™ PBT resin |
---|---|
Grade | 7164G-X02 |
Material Features / Reasons of Adoption | Low Warpage, Flame retardancy, Good Appearance |

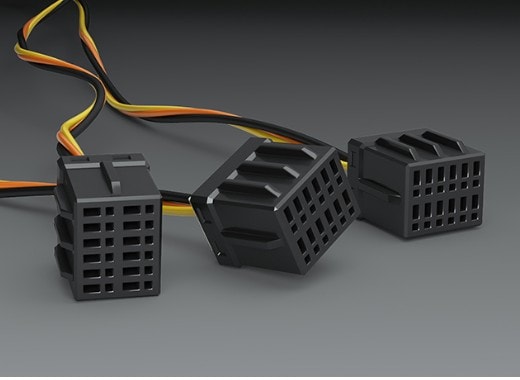

Wire Harness Connector
Resin | TORAYCON™ PBT resin |
---|---|
Grade | 1401X45 |
Material Features / Reasons of Adoption | Moldability, Fast Molding Cycle, Strength, Toughness |
Resin | TORAYCON™ PBT resin |
---|---|
Grade | 1401 F01 |
Material Features / Reasons of Adoption | Super High Flow for Thin Wall |

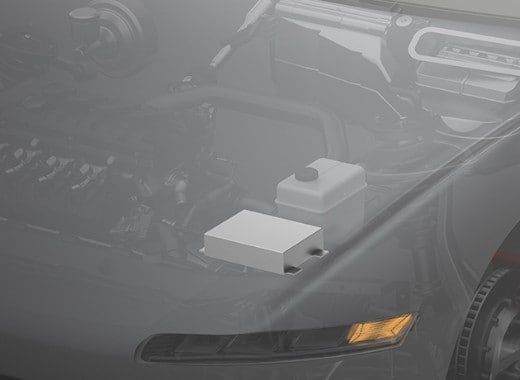

ECU Case
Resin | TOYOLAC™ ABS resin |
---|---|
Grade | 470Y TG1 |
Material Features / Reasons of Adoption | Heat Resistance |
Resin | TORAYCON™ PBT resin |
---|---|
Grade | 5008G-X30 |
Material Features / Reasons of Adoption | High Flow, Hydrolysis Resistance for Super Multi-Pole Connector |
Resin | TORAYCON™ PBT resin |
---|---|
Grade | 4158G-30H, 4151G-30HL |
Material Features / Reasons of Adoption | Laser Weldability, Hydrolysis Resistance, Low Warpage |
ECU Case (Transmission)
Resin | TORELINA™ PPS resin |
---|---|
Grade | A575W20 |
Material Features / Reasons of Adoption | ATF Resistance, Heat Cycle Resistance |

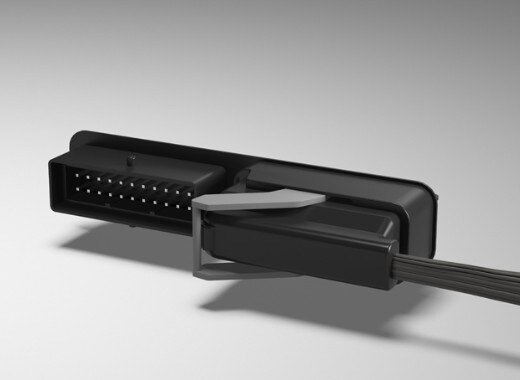

ECU Connector
Resin | TORAYCON™ PBT resin |
---|---|
Grade | 1101G-30F |
Material Features / Reasons of Adoption | High Flow for Multi-Pole Connector |
Resin | TORAYCON™ PBT resin |
---|---|
Grade | 5008G-X15, 5008G-X30 |
Material Features / Reasons of Adoption | High Flow, Hydrolysis Resistance for Multi-Pole Connector |
Sensor Case
Resin | TORAYCON™ PBT resin |
---|---|
Grade | 5008G-X15, 5008G-X30 |
Material Features / Reasons of Adoption | High Flow, Hydrolysis Resistance |
Resin | TORAYCON™ PBT resin |
---|---|
Grade | 4158G-30H, 4151G-30HL |
Material Features / Reasons of Adoption | Laser Weldability, Hydrolysis Resistance, Low Warpage |
Resin | TORELINA™ PPS resin |
---|---|
Grade | A602L X01 |
Material Features / Reasons of Adoption | Laser Weldability |

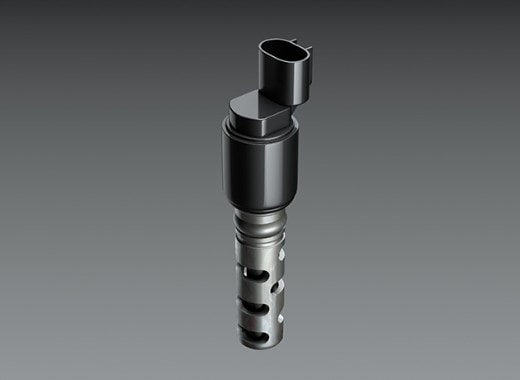

Oil Control Valve
Resin | TORELINA™ PPS resin |
---|---|
Grade | A575W20 |
Material Features / Reasons of Adoption | Heat Resistance, Flame retardancy |
Resin | TORELINA™ PPS resin |
---|---|
Grade | A675 GS1 |
Material Features / Reasons of Adoption | Dimensional Stability |
Resin | TORELINA™ PPS resin |
---|---|
Grade | A504X90 |
Material Features / Reasons of Adoption | High Strength |
Electric Parking Brake (Gear Housing)
Resin | TORAYCON™ PBT resin |
---|---|
Grade | 1101G-30H |
Material Features / Reasons of Adoption | Hydrolysis Resistance, Chemical Resistance |

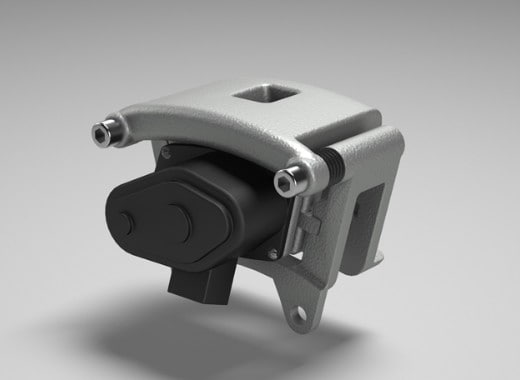

Electric Parking Brake (Gear)
Resin | TORAYCA™ CFRTP |
---|---|
Grade | PA66-CF |
Material Features / Reasons of Adoption | No extra cost for Metal Quenching, Downsizing and Lightweight |

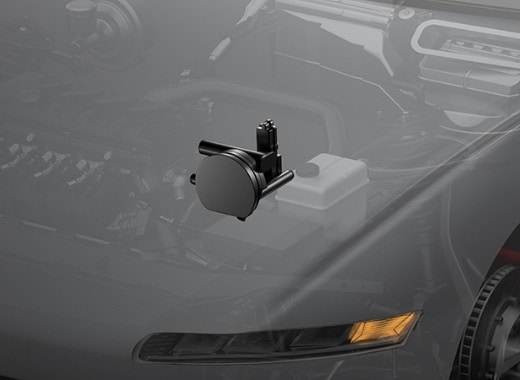

Cooling Module
Resin | TORELINA™ PPS resin |
---|---|
Grade | A675 GS1 |
Material Features / Reasons of Adoption | Low Water Absorption, Coolant Resistance, Dimensional Stability, Heat Cycle Resistance |
Resin | TORELINA™ PPS resin |
---|---|
Grade | A504 CX1 |
Material Features / Reasons of Adoption | Hydrolysis Resistance, Coolant Resistance |
Resin | TORELINA™ PPS resin |
---|---|
Grade | A604 CX1 |
Material Features / Reasons of Adoption | Hydrolysis Resistance, Coolant Resistance, High Toughness |
Resin | TORELINA™ PPS resin |
---|---|
Grade | A570 CX1 |
Material Features / Reasons of Adoption | Hydrolysis Resistance, Coolant Resistance, Dimensional Stability, Creep Resistance |
Electric Water Pump
Resin | TORELINA™ PPS resin |
---|---|
Grade | A675 GS1 |
Material Features / Reasons of Adoption | Coolant Resistance, Heat Cycle Resistance |
Resin | TORELINA™ PPS resin |
---|---|
Grade | A673M T |
Material Features / Reasons of Adoption | High Toughness, Hydrolysis Resistance |
Resin | TORELINA™ PPS resin |
---|---|
Grade | A504 CX1, A604 CX1, A570 CX1 |
Material Features / Reasons of Adoption | Hydrolysis Resistance, Coolant Resistance |

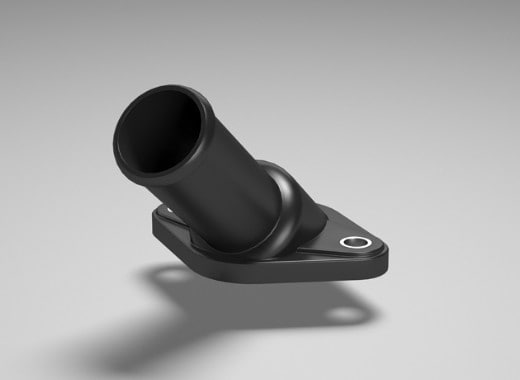

Water Pipe
Resin | AMILAN™ Nylon resin |
---|---|
Grade | CM3001G-30, CM3006G-30 |
Material Features / Reasons of Adoption | Coolant Resistance |
Resin | AMILAN™ Nylon resin |
---|---|
Grade | CM3211G-35U |
Material Features / Reasons of Adoption | Calcium Chloride Resistance |
Resin | TORELINA™ PPS resin |
---|---|
Grade | A675 GS1, A673M T |
Material Features / Reasons of Adoption | Coolant Resistance, Dimensional Stability |

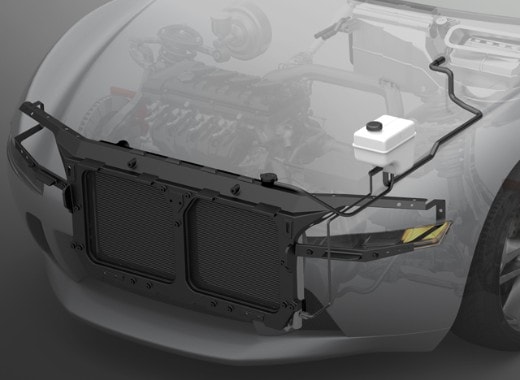

Cooling Tube
Resin | TORELINA™ PPS resin |
---|---|
Grade | A670X01, A670SE1 |
Material Features / Reasons of Adoption | Coolant Resistance, Moldability of Extrusion, Flexibility |

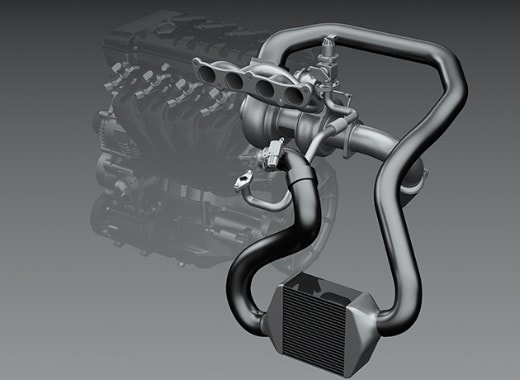

Turbo Duct
Resin | AMILAN™ Nylon resin |
---|---|
Grade | CM1056 K48 |
Material Features / Reasons of Adoption | Blow Moldability |
Resin | TORELINA™ PPS resin |
---|---|
Grade | B671M X01 |
Material Features / Reasons of Adoption | Blow Moldability |
Emission Gas Sensor
Resin | TORELINA™ PPS resin |
---|---|
Grade | A575W20 |
Material Features / Reasons of Adoption | Heat Cycle Resistance, Epoxy Adhesiveness, Heat Resistance, Chemical Resistance |
EGR Pipe
Resin | AMILAN™ Nylon resin |
---|---|
Grade | PA6-GF30 |
Material Features / Reasons of Adoption | Vibration Weldability |

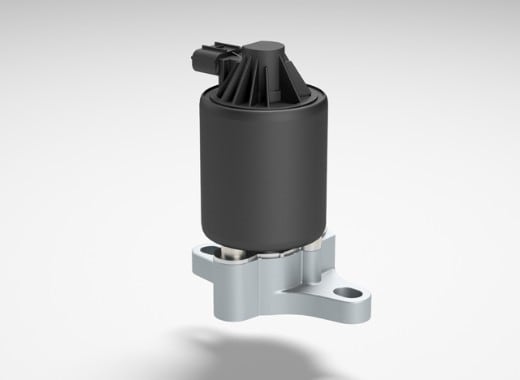

EGR Valve
Resin | TORELINA™ PPS resin |
---|---|
Grade | A673M T |
Material Features / Reasons of Adoption | High Toughness |
Resin | TORELINA™ PPS resin |
---|---|
Grade | A504X90 |
Material Features / Reasons of Adoption | High Rigidity |

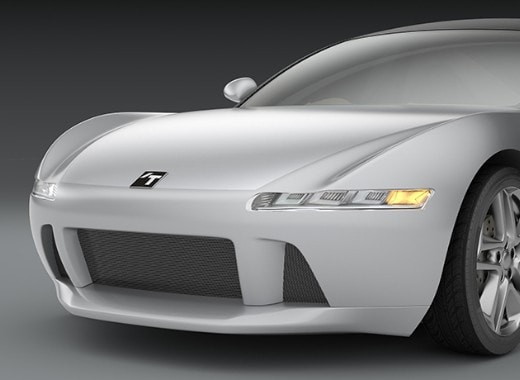

Front Grill
Resin | TOYOLAC™ ABS resin |
---|---|
Grade | TM335 GM2, 100 MPK |
Material Features / Reasons of Adoption | Painting Failure Reduction |

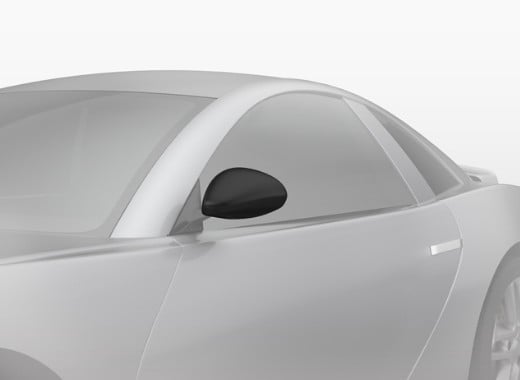

Door Mirror
Resin | TOYOLAC™ ABS resin |
---|---|
Grade | 100 MPM, 100 MPK, 700 X01 |
Material Features / Reasons of Adoption | Painting Failure Reduction |

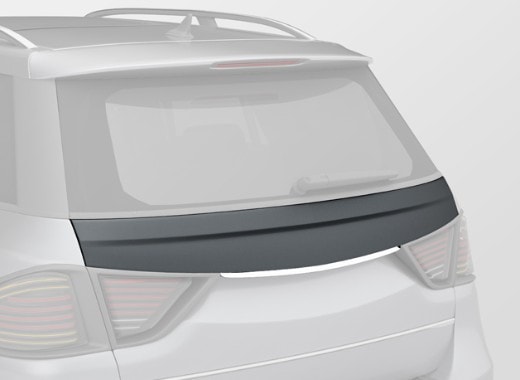

Rear Door Garnish
Resin | TOYOLAC™ ABS resin |
---|---|
Grade | 440Y X13, 460Y X01, TM335 GM2 |
Material Features / Reasons of Adoption | Painting Failure Reduction |

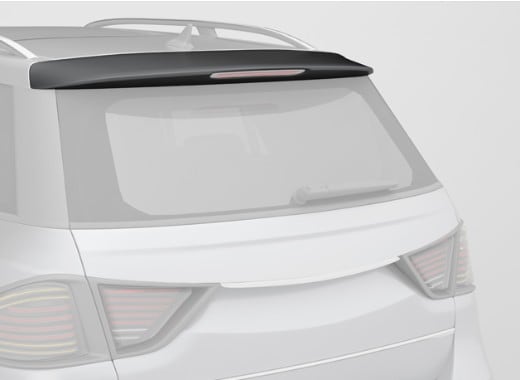

Rear Spoiler
Resin | TOYOLAC™ ABS resin |
---|---|
Grade | PX18 X02, 440Y X13 |
Material Features / Reasons of Adoption | Painting Failure Reduction |
Resin | TOYOLAC™ ASA resin |
---|---|
Grade | TA42C X01, TA42 X02 |
Material Features / Reasons of Adoption | Weather Resistance, Heat Resistance |

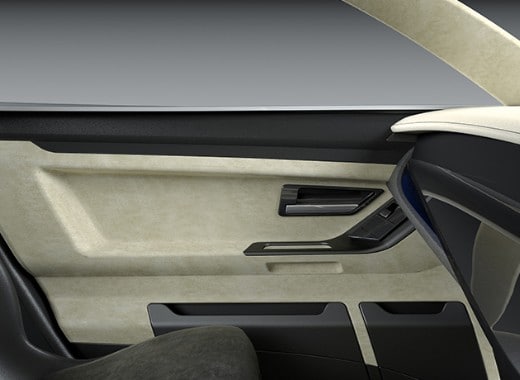

Door Panel
Resin | TORAYPEF™ Polyolefin Form |
---|---|
Grade | SR28, AP17, AX5R |
Material Features / Reasons of Adoption | Moldability, Heat Resistance, Softness |
Console Box
Resin | TOYOLAC™ ABS resin |
---|---|
Grade | 100G-30, 450Y X10 |
Material Features / Reasons of Adoption | High rigidity, Heat Resistance |

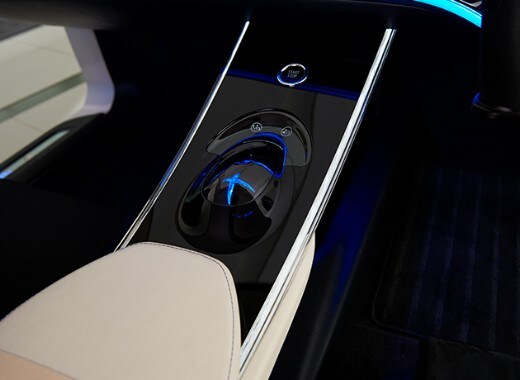

Console Panel Cover
Resin | TORAYCON™ PBT resin |
---|---|
Grade | 7151G-30 |
Material Features / Reasons of Adoption | Low Warpage, Fast Molding Cycle |

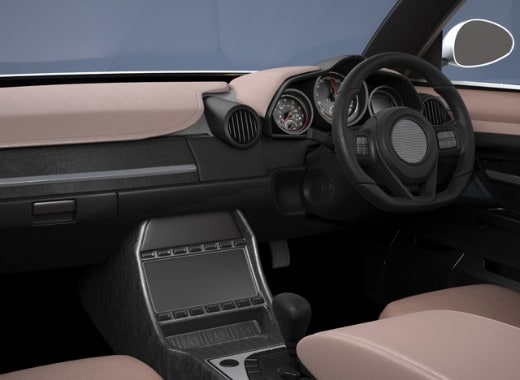

Console Dash Board
Resin | TORAYPEF™ Polyolefin Form |
---|---|
Grade | SR28,AP17 |
Material Features / Reasons of Adoption | Softness, Moldability |
Instrument Panel
Resin | TOYOLAC™ ABS resin |
---|---|
Grade | 450Y X10, PX10 X07 |
Material Features / Reasons of Adoption | Impact Resistance |
Resin | TORAYPEF™ Polyolefin Form |
---|---|
Grade | SR28, AP17 |
Material Features / Reasons of Adoption | Easy Deployment of Airbag, Softness, Moldability |

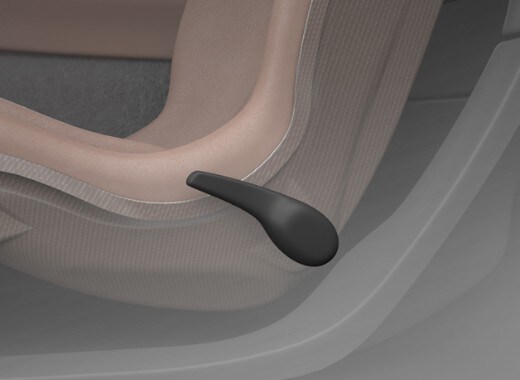

Seat Lever
Resin | TOYOLAC™ ABS resin |
---|---|
Grade | SX01 |
Material Features / Reasons of Adoption | Chemical Resistance |
Lamp (Extension Reflector)
Resin | TORAYCON™ PBT resin |
---|---|
Grade | Unreinforced PBT |
Material Features / Reasons of Adoption | Low Outgas, Toughness, High Flow |

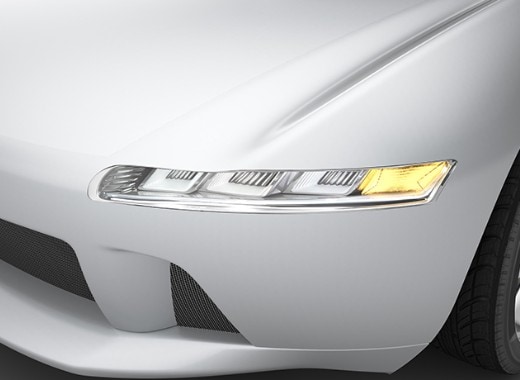

Lamp (Reflector)
Resin | TORELINA™ PPS resin |
---|---|
Grade | PPS Filler Reinforced |
Material Features / Reasons of Adoption | Specularity, Heat Resistance, Low Outgas |

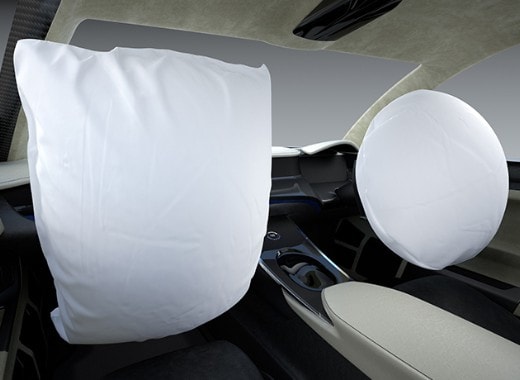

Airbag Retainer
Resin | AMILAN™ Nylon resin |
---|---|
Grade | U118G-40 |
Material Features / Reasons of Adoption | High Strength, Toughness |
Crush Pad
Resin | TORAYCON™ PBT resin |
---|---|
Grade | 8207X01, 8207X05 |
Material Features / Reasons of Adoption | High Impact |
