Examples of molding conditions for actual molded products

The following figure provides examples of optimal conditions for a product with a simple shape (DIMM, ZIF) and a product with a complex shape (SO-DIMM). We recommend using this as a benchmark for obtaining quality product in a stable manner.

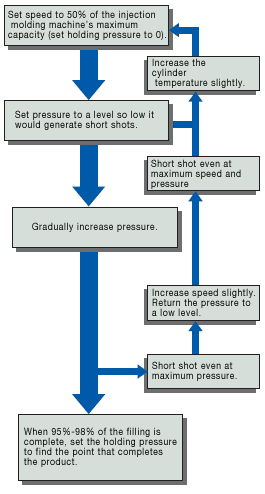

Product with a simple shape (DIMM,ZIF)
Product with a simple shape (DIMM,ZIF)

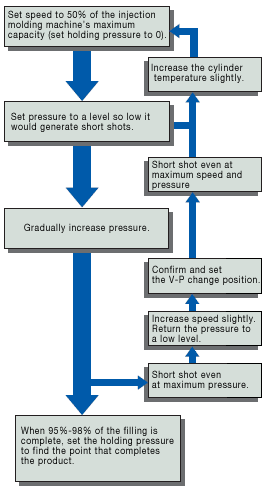

Product with a complex shape (SO-DIMM)
Product with a complex shape (SO-DIMM)

Example (flow chart) of molding conditions for actual products
