Impact Properties

Ⅰ. Charpy Impact Test

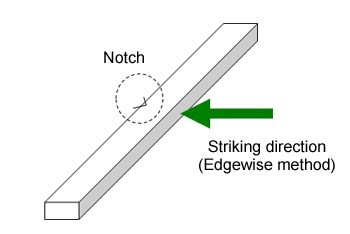

Fig. 5.36  Single-notch test pieceFig. 5.36 Single-notch test piece

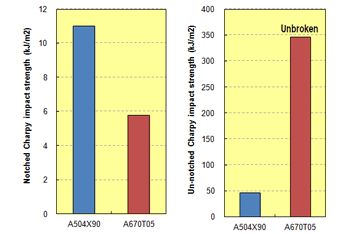

Fig. 5.37  Charpy impact strength comparison (23℃)Fig. 5.37 Charpy impact strength comparison (23℃)

The impact properties, which indicate a material's toughness, can be determined from the potential energy difference resulting from striking the material with a pendulum hammer. The impact properties include the notched impact strength, as determined with a V-shaped notch, and the un-notched impact strength. (Fig. 5.36) In determining the un-notched impact strength, the entire test piece receives the impact energy caused by the hammer striking, whereas in determining the notched impact strength, breakage is promoted by concentrating the impact energy on the notch. For this reason, the relationship may be reversed depending on whether the test piece is notched, as with A504X90 (PPS - 40% GF) and A670T05 (elastomer improvement, unreinforced PPS). (Fig. 5.37) In particular, elastomer improvement, toughness grades may absorb impact energy by deforming considerably, so that they do not break. In actual product design, the notch effect (stress concentration) often cannot be avoided due to shape of the product and other factors. Thus, the notched impact strength is viewed as more important.

Table. 5.3 Impact properties of TORELINA™ (23℃)

Item Units Glass fiber reinforced Glass + filler reinforced Elastomer improvement Unreinforced
A504X90 A604 A310MX04 A610MX03 A673M A575W20 A495MA2B A900 A670T05
Charpy impact strength Notched kJ/m2 11.0 12.0 8.0 7.0 15.0 7.3 7.5 4.0 5.8
Un-notched 45 46 18 22 55 36 40 260 345
  • ※Test method: Conforms to ISO179-1

Ⅱ. Temperature Dependence

The temperature dependence of the Charpy impact strength of nine representative grades of TORELINA™ is shown in Figs. 5.38 to 5.45. The temperature dependence of the impact properties exhibits a different tendency depending on whether reinforcement is used, whether elastomer improvement is applied, and other factors. General reinforced grades (such as A504X90) have a low temperature dependence, and exhibit a stable impact strength over a wide temperature range. Elastomer improvement grades, on the other hand, differ in the temperature dependence of their impact properties depending on the reinforcement content, but exhibit high impact resistance due to the elastomer improvement effect. In particular, the following tendency can be observed: As the reinforcement content of a material decreases, the effect of the impact strength (toughness) improvement with elastomers increases.

[General reinforced grades]

1 A504X90 (standard) and A604

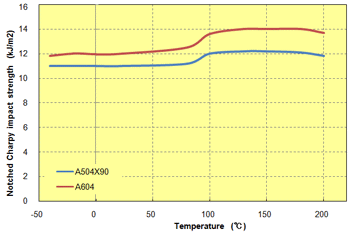

  • Fig. 5.38  Temperature dependence of notched impact strengthFig. 5.38 Temperature dependence of notched impact strength

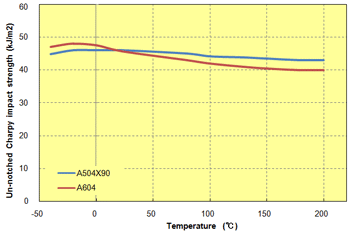

  • Fig. 5.39  Temperature dependence of un-notched impact strengthFig. 5.39 Temperature dependence of un-notched impact strength

2 A310MX04 (standard) and A610MX03

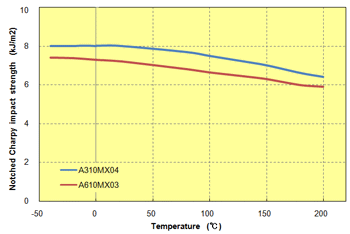

  • Fig. 5.40  Temperature dependence of notched impact strengthFig. 5.40 Temperature dependence of notched impact strength

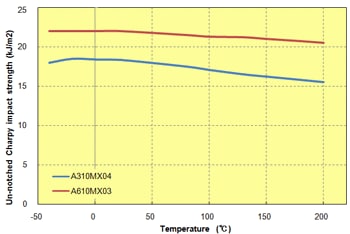

  • Fig. 5.41  Temperature dependence of un-notched impact strengthFig. 5.41 Temperature dependence of un-notched impact strength

[Elastomer improvement grades]

3 A673M、A575W20、A495MA2

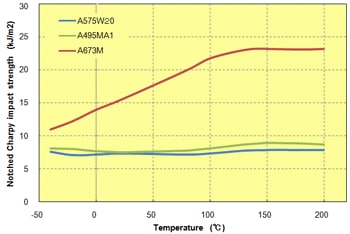

  • Fig. 5.42  Temperature dependence of notched impact strengthFig. 5.42 Temperature dependence of notched impact strength

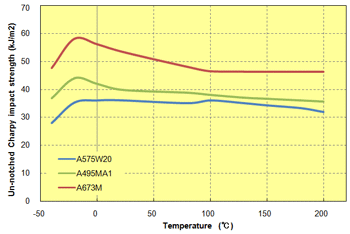

  • Fig. 5.43  Temperature dependence of un-notched impact strengthFig. 5.43 Temperature dependence of un-notched impact strength

[Unreinforced grades]

3 A900 and A670T05

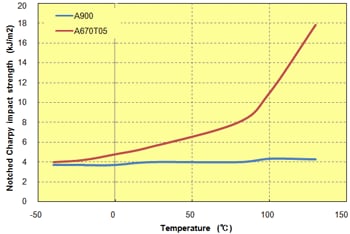

  • Fig. 5.44  Temperature dependence of notched impact strengthFig. 5.44 Temperature dependence of notched impact strength

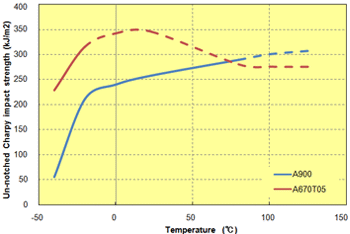

  • Fig. 5.45  Temperature dependence of un-notched impact strengthFig. 5.45 Temperature dependence of un-notched impact strength
