Battery Components
With the expansion of renewable energy introduction and as part of BCP measures, the demand for battery
components is increasing. Battery components, which require long life, high reliability, and safety,
demand many properties including durability for their constituent components.
Toray provides resin materials that excel in insulation properties, heat resistance, chemical resistance,
and further moldability, contributing to improvements in design efficiency and cost optimization. We
support the stable operation of power infrastructure, higher performance of EV batteries, and improvement
of energy efficiency.

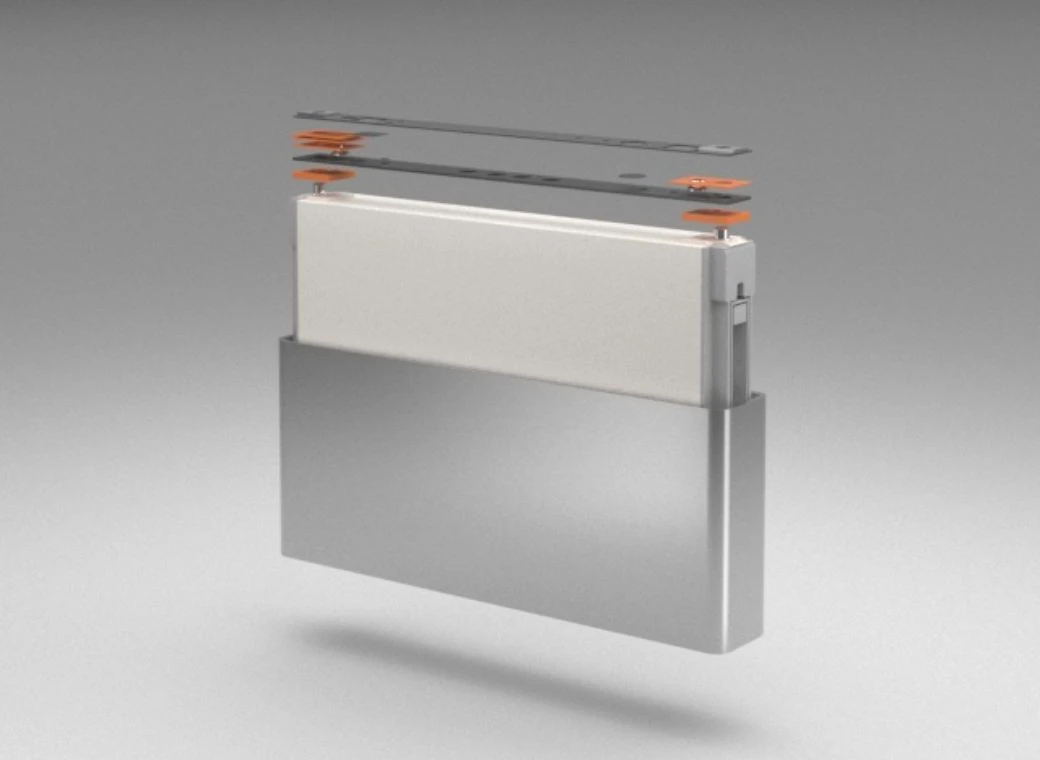

Prismatic Batteries
Prismatic batteries excel in space efficiency and the degree of design freedom for modules, and are
widely adopted in battery components and large-scale energy storage applications. Due to their
structure, the contact area with the electrodes is large, making it important to ensure high heat
dissipation and rigidity.
Toray's resin materials combine excellent heat resistance, electrical insulation properties, and
moldability, making them optimal for insulating plates and case components. Under high-voltage
environments, they realize highly safe and reliable module designs while also accommodating thinner
walls and lightweighting.
Grades
This is a material in which heat cycle resistance and long term heat resistance are imparted to PPS resin. The flammability specific to PPS is also a key point, and it is adopted in battery cell cases. In addition, the balance of dimensional stability and impact resistance is highly evaluated, and its expansion to fireproof heat insulation components of batteries is also progressing.
A900 F1
In cases where electrolyte resistance (low elution) is emphasized, unfilled PPS resin that does not contain glass fibers or the like is adopted. As a material that excels in low warpage and flowability among unfilled PPS resins, and also excels in mold releasability during molding, this material is adopted for insulating components inside battery cells.
A510T 35 M
When conductive properties are required for the positive electrode components of batteries, this material, in which conductive properties are imparted to PPS resin, is adopted.

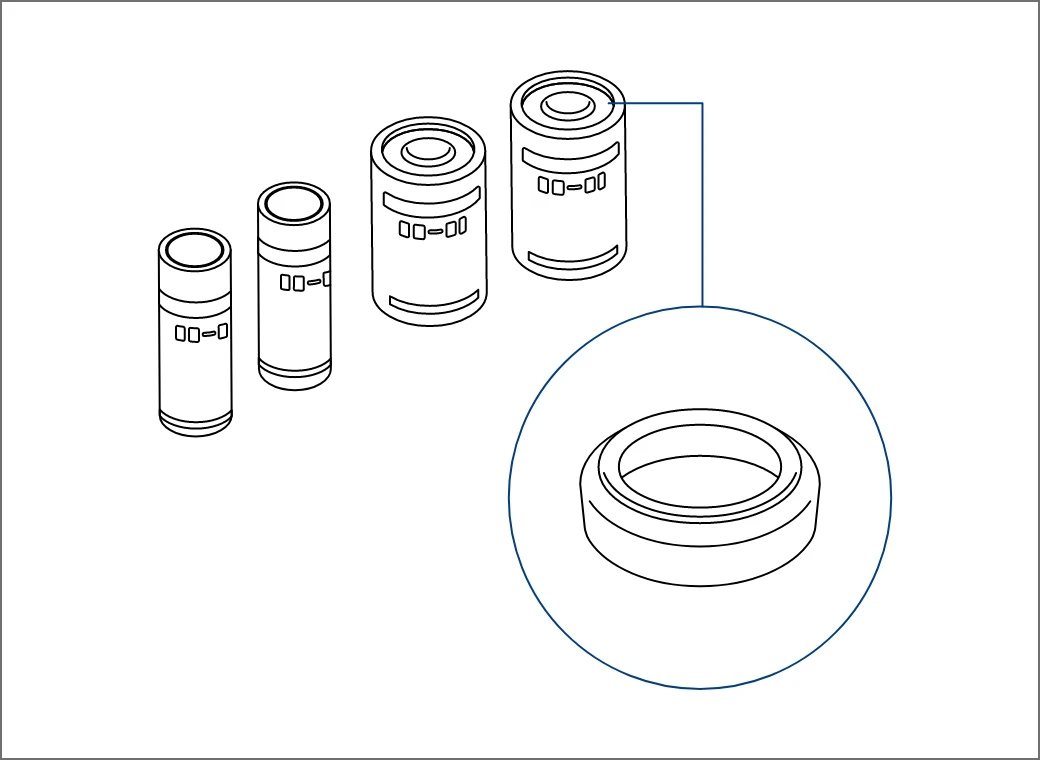

Cylindrical (and Coin) Batteries
Toray's resin materials combine excellent electrical insulation properties and moldability, and have a wide track record in components such as gaskets and insulating components. Toray proposes optimal materials depending on the type of electrolyte, supporting highly safe and reliable battery design.
Grades
This is a PA610 material. Leveraging the advantages of high flexibility, low water absorption properties, and being a bio-based material, it is adopted in gasket applications for alkaline batteries, etc.
This is a material that balances flexibility (caulking properties), electrolyte resistance, water vapor barrier properties, and creep resistance at a high level by compounding an elastomer into PPS resin. It is adopted in gaskets for heat-resistant coin batteries.
This is a material in which high flow and fast molding cycle are imparted to PBT resin. Because multi-cavity molding is possible, it is widely adopted in battery insulating components, etc.
Download
You can view materials related to products and methods that support product development in the energy and infrastructure industry.
Introduction Support
Our domestic and international technical support centers provide consistent support from resin selection to design, analytical evaluation, and follow-up after market launch.
