Mobility
We support the evolution of mobility
With the advancement of electrification and autonomous driving, resin components are required to have various properties such as high heat resistance, insulation properties, dimensional stability, and impact resistance. Toray provides high-performance resin products compatible with the modularization of ECUs, thermal management, and sensor peripheral components, supporting design challenges for next-generation vehicles.
Applications
Electrification
Toray responds to diverse themes in EV development, such as vehicle lightweighting, higher strength, and improving the durability of high-voltage components.
ADAS / AD
Toray contributes to the optimization of sensor placement and improvement of production efficiency by proposing resin materials with high dimensional accuracy in high-temperature ranges, supporting the development of ADAS and AD.
ECU (Electronic Control Unit)
As the integration of ECUs in automotive electronic control systems progresses, Toray provides high-performance resin materials with high heat resistance and high heat dissipation, supporting the evolution of next-generation ECUs.

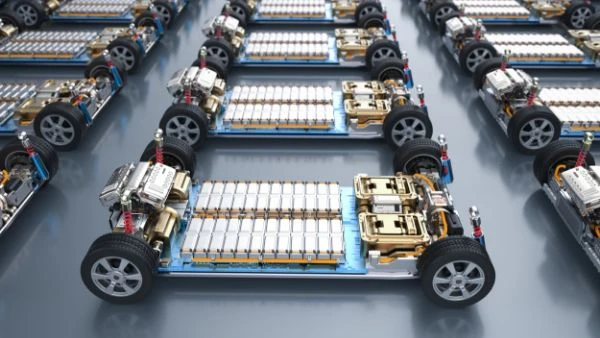

Thermal Management
Toray provides materials suitable for building efficient thermal management systems in power electronics, enhancing vehicle performance by extending cruising range and improving safety.
Safety
Toray contributes to the realization of safe and secure automobile driving by developing materials that combine energy absorption upon impact and durability.
Toray's Proposals
Introducing technologies, methods, and products that support advanced manufacturing
PPS resin with excellent tracking resistance that shortens creepage distance under high voltage
Mobility xEV Downsizing Space saving Power equipment Insulation measures
Development of optimal PBT and PPS resins for laser weldability. To improve quality and shorten manufacturing periods of high-performance device components
Mobility xEV High-performance devices Downsizing Laser weldability
EMC countermeasures using Carbon Fiber Reinforced Thermoplastic (CFRTP) with excellent electromagnetic shielding properties
Mobility xEV Downsizing Space saving Power equipment Insulation measures
PICK UP
Introducing featured products chosen for their excellent properties
TORELINA™ PPS resin
A673M T
- Composition
- PPS-I-GF30
- Material properties
- High toughness, undercut moldability, high impact resistance, weldability
- Applications
- Resin coolers, explosion-proof valves
TORELINA™ PPS resin
A660H V
- Composition
- PPS-I-(GF+MD)65
- Material properties
- Tracking resistance (CTI Rank 0), high heat dissipation, low warpage
- Applications
- Bus bars, terminal blocks, power modules
TORELINA™ PPS resin
A675 GS1
- Composition
- PPS-I-(GF+MD)50
- Material properties
- Heat cycle resistance, flammability, high impact resistance, low warpage
- Applications
- Bus bars, terminal blocks, current sensors
TORAYCON™ PBT resin
8207X05 B
- Composition
- PBT+PC-I
- Material properties
- Super high impact, hydrolysis resistance, low warpage
- Applications
- Collision absorbing materials, crash pads
TORAYCON™ PBT resin
7164G-X02
- Composition
- PBT+SAN+PET-GF30FR(17)
- Material properties
- Flammability V-0, low warpage, hydrolysis resistance, good appearance
- Applications
- ECUs, high voltage junction boxes
TORAYCON™ PBT resin
1101G-30 H
- Composition
- PBT-GF30
- Material properties
- Hydrolysis resistance
- Applications
- Electric parking brakes, millimeter wave radar radomes
We offer products for various other applications and grades.
Download
You can view materials related to products and methods that support product development in the automotive industry.
Introduction Support
Our domestic and international technical support centers provide consistent support from resin selection to design, analytical evaluation, and follow-up after market launch.
